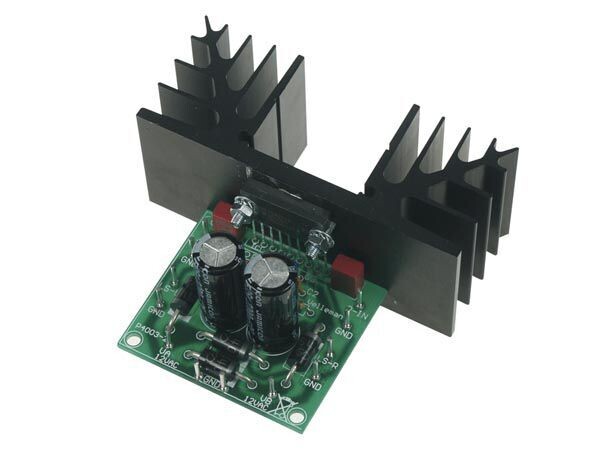

Velleman VM113 STEREO AMPLIFIER MODULE 2 x 30W

This small amplifier is constructed with the TDA2616 IC, with a maximum supply capability of 2 x 15Wrms (4 ohm) of 2 x 10Wrms (8 ohm). The IC is thermally and short-circuit protected. Additional rectifier and smoothing filter are unnecessary, as alternating current can be directly connected to the unit.

Features

also available in kit version: K4003

Specifications

music power output: 2 x 30W / 4ohm

RMS output: 2 x 15Wrms / 4ohm or 2 x 10Wrms / 8ohm

total harmonic distortion: 0.07% (1W / 1kHz)

channel separation: 70dB

frequency response: 7Hz to 60kHz (-3dB)

signal-to-noise ratio: 98dB (A-weighted)

input sensitivity: 300mV / 150Kohm

transient suppression on/off switch

overload and short-circuit protection: max. 1h

supply voltage: 2 x 12Vac / 2A (50W transfo recommended)

dimensions: 70 x 50mm

Also available in kit form CLICK HERE

Data Sheet
