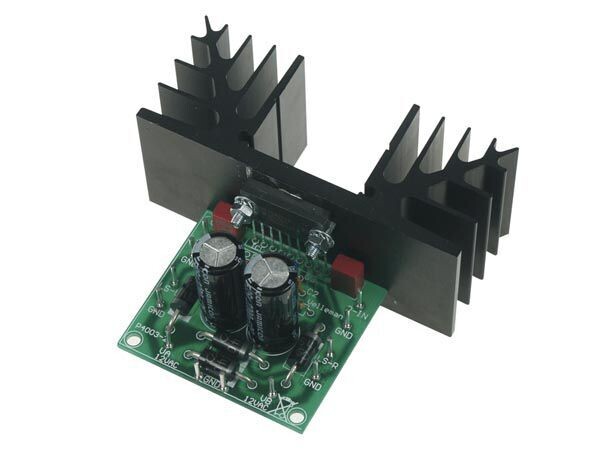

K400. Velleman 2 x 30 W AUDIO POWER AMPLIFIER

This small amplifier is constructed with the TDA2616 IC, with a maximum supply capability of 2 x 15Wrms (4 ohm) of 2 x 10Wrms (8 ohm). The IC is protected against overheating and short circuits. Additional rectifier and smoothing filter are unnecessary because alternating current can be connected directly with the unit.

Features

exists also in mounted version: VM113

Specifications

music power output: 2 x 30W / 4ohm

RMS output: 2 x 15Wrms / 4ohm or 2 x 10Wrms / 8ohm

total harmonic distortion: 0.07% (1W / 1kHz)

channel separation: 70dB

frequency response: 7Hz to 60kHz (-3dB)

signal-to-noise ratio: 98dB (A weighted)

input sensitivity: 300mV / 150Kohm

transient suppression on/off switch

overload and short-circuit protection: max. 1h

supply voltage: 2 x 12Vac / 2A (50W transformer recommended)

dimensions: 70 x 50mm / 2.8 x 2"
