Xylophone Project Kit

Xylophone Project Kit

Store / Electronic Kits / PICAXE & PIC
€7.72
In stock: 2 available
Product Details

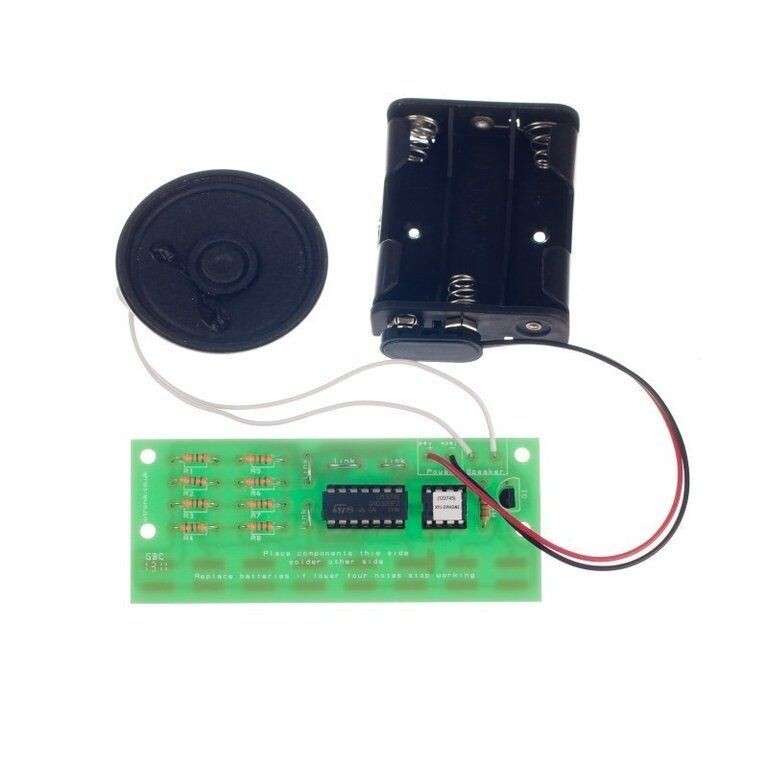

PIC microcontroller converts the touch into tunes

The xylophone has eight notes, which are sounded by placing a finger onto the PCB, allowing a simple tune to be played. The conversion of key presses into the frequency of the note is done by a PIC micro-controller, pre-programmed with software for this application.

If using this kit in a school, the student can mount the PCB, battery pack and speaker into a box they have designed to make a children's toy.

This kit contains:

1 x PP3 clip lead

1 x 3AA battery holder

1 x LM324 op-amp IC

1 x 14 pin IC holder

1 x PIC 12F675 pre-programmed with xylophone code

1 x 8 pin IC holder

1 x 3.3Kohm resistor

8 x 4.7Mohm resistors

1 x BC337 NPN transistor

1 x 50mm 8ohm speaker

0.5m connecting wire

1 x xylophone PCB

Requires x3 AA batteries

PCB LxW (mm): 93 x 37.5.

PCB Component Count: 13.

Voltage Nominal (V): 4.5.

Voltage Range (V): 3.3V - 5.

Standby Current (mA): 1.6.

Current max at Nominal Voltage (mA): 115
