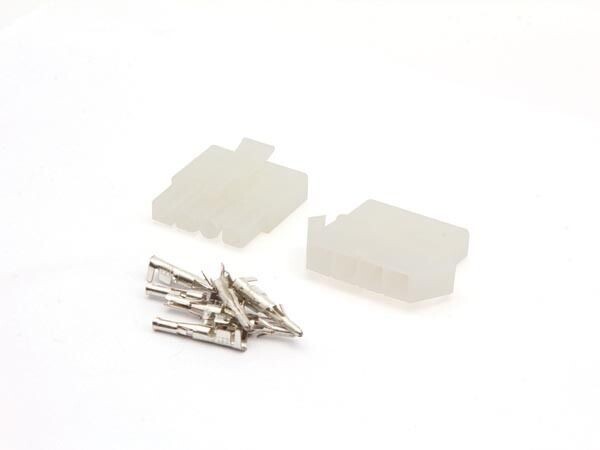

Velleman WTWCS1X4 WIRE TO WIRE CONNECTOR SET 6.2mm / 1 x 4 POLES

Features

for cables of 0.5 to 2.1 mm² / 14 to 20 AWG

ratings: 50 V / 10 A

can be crimped with: VTNCT

Specifications

number of contacts: 1 x 4 poles

contact resistance: 10 mohm max.

insulator resistance: 1000 Mohm min.

dielectric strength: 1500 VAC for 1 minute

current rating: 8-13 A

voltage rating: 300 VAC

pitch: 6.2 mm / 0.24"

material:

housing: nylon UL 94V-0

contact: phosphor bronze (tin-plated)
