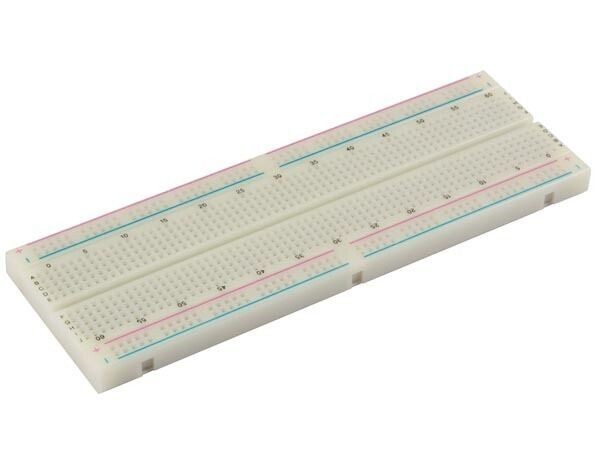

Velleman VTBB2 SOLDERLESS BREADBOARD - 830 HOLES

Features

base socket (see figure): twin columns of 5 x 63 terminals

bus strip (see figure): 4 buses of 25 connected terminals are arranged in 4 rows

Specifications

material:

external body is made of ABS

the internally interconnected clips consist of phosphor-bronze nickel-plated spring clips

base socket: 1

bus strip: 2

tie points: 830

14-pins IC capacity: 9

binding post: 0

dimensions: 165.5 x 56.5 x 8.5 mm

weight: 81 g

jumper wire set: WJW70, WJW004, WJW005, WJW006,WJW009 (not included)
