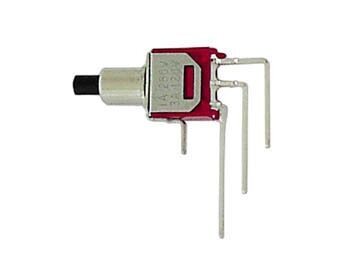

Velleman TS-22B 90° VERTICAL SUBMINIATURE PUSH-BUTTON SWITCH - SPDT OFF-(ON)

Specifications

switching position:

2-1: ON

2-3: (ON)

contact rating: 1A with resistive load at 120Vac or 28Vdc

electrical life: 60000 make-and-break cycles at full load

contact resistance:

initially max. 20mohm at 2-4Vdc

100mA for both coin silver and gold-plated contacts

insulation resistance: 1000Mohm min.

dielectric strength: 1000Vrms at sea level

operating temperature: -30°C to +85°C

materials:

case: diallyl phthalate (DAP)

plunger: thermoplastic polyester

bushing: brass, nickel-plated

housing: stainless steel

terminal support: brass, electrotin-plated

contacts: coin silver, silver-plated

terminals: brass, silver-plated
