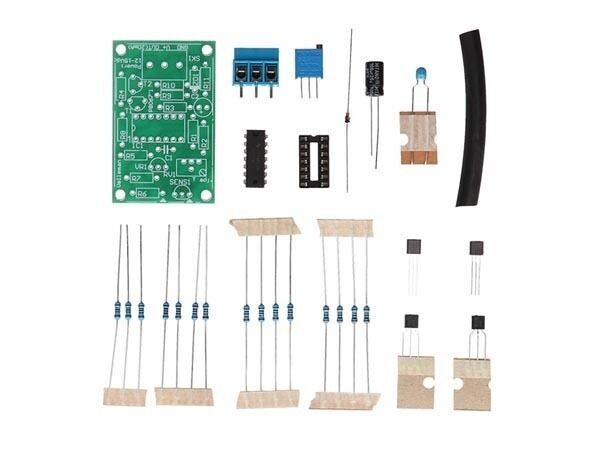

WSHA8067 UNIVERSAL TEMPERATURE SENSOR KIT

Product description

Measure indoor and outdoor temperatures, control heating and/or cooling of rooms, equipment... Monitor temperatures in processes, put a temperature readout on your website, check your pool temperature...

Specifications
range: -20° ~ +70°C
output: 0 ~ 20mA current loop
output voltage compliance: 10V
accuracy: 2° full range
one single adjustment
3-wire system: GND, +V and OUT
power supply: 12VDC for 0 ~ 5V OUT / 15VDC for 0 ~ 10V OUT
current consumption: 30mA max.
dimensions: 55 x 35 x 15mm / 2.2 x 1.4 x 0.6"
