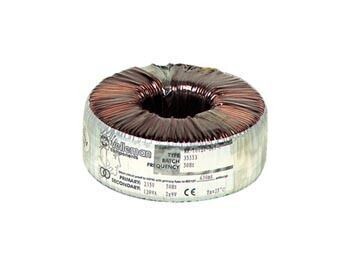

Velleman 16024 TOROIDAL TRANSFORMER 160VA 2 x 24V / 2 x 3.33A

Features

approvals: EN 60742/BS3535

fuse: 130°C thermal fuse

Specifications

voltage: 2 x 24V

current: 2 x 3.33A

regulation: 7%

power: 160VA

weight: 2.30kg

Ø: 115mm max.

height: 66mm max.

fixing bolt: M8 x 70mm

nut: M8

metal washer: Ø92mm

rubber washer: Ø96mm

connections: 200mm PVC, 10mm stripped and tinned leads

primary: 1672 18AWG black - black : 1 x 230V

secondary: *red - yellow / *blue - grey (* = start)

primary voltage: 230V / 50Hz

primary-secondary insulation: 500Vdc

secondary-secondary insulation: 500Vdc

insulation category: class A, 105°C
