Device Case VCE VCB VEB IC PTOT hFE Ft

style max. (V) max. (V) max. (V) max. (A) max. (W) min. @ IC min. (MHz)

MPSA63 TO-92(B) 30 30 10 0.1 0.35 20000@0.1A 125

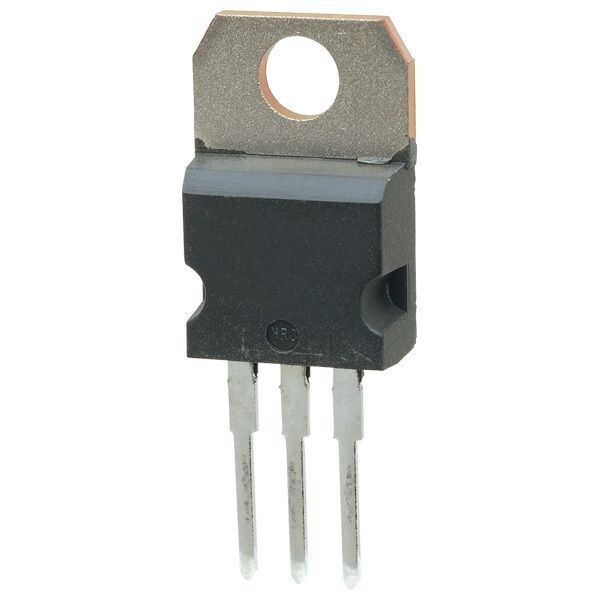

TIP125 TO-220 60 60 5 5 65 1000@0.5A –

TIP125 TO-220 60 60 5 5 65 1000@0.5A –

TIP126 TO-220 80 80 5 5 65 1000@3A –

BD680 TO-126 80 100 3 4 40 2200@0.5A –

BD680 TO-126 80 80 5 4 40 750@1.5A –

BD678 SOT-32 100 100 5 4 40 750@2A –

TIP127 TO-220 100 100 5 5 65 1000@3A –

TIP127 TO-220 100 100 5 5 65 1000@3A –

TIP147 TO-220 100 100 5 10 80 1000@5A –

BDW94C TO-220 100 100 4 12 80 750@5A –

BDW94C TO-220 100 100 5 12 80 750@5A –

ZTX705 E-line 120 140 10 1 1 3000@1A 160

MJ11015 TO-3 120 120 5 30 200 1000@20A 4

Data Sheet
