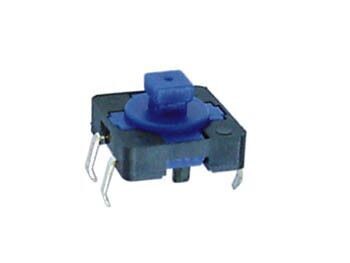

Velleman KRS1273 TACTILE SWITCH 12 x 12mm HEIGHT : 7.3mm

Features

applications:

for all types of electronic equipment such as telephones, audio instruments, TV sets, VCR's, ...

micro-miniature, lightweight

snap-in type: suitable for direct PCB mounting

Specifications

dimensions: 12 x 12mm

height: 7.3mm

rating: 12Vdc - 50mA

insulation resistance: > 100Mohm - 250Vdc

withstand voltage: 100Vac 1 minute

contact resistance: < 100mohm

soldering temperature: 255°C for max. 5 seconds

mechanical life: 500000 cycles

electrical life: 300000 cycles

ambient temperature range: -25°C to +70°C

ambient humidity range: < 85% RH

operating force: 130 to 160 ± 30gf
