CS-S-15-04-N

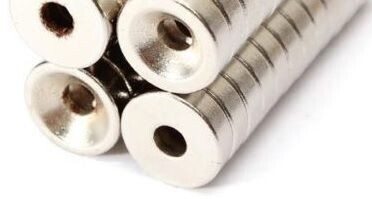

Disc magnet Ø 15 mm, height 4 mm
with countersunk borehole, N35, nickel-plated

Strength: approx. 3 kg

Description
Countersunk neodymium disc magnets can be fastened with a countersunk head screw. They are only 4 mm thick and therefore very discreet for hanging up signs, tools, etc. Especially suitable for cabinetmaking, kitchen installations, booth and store construction, signage technology, etc.

Article ID CS-S-15-04-N

Material NdFeB

strength approx. 3 kg (approx. 29,4 N)

Diameter D 15 mm

Height H 4 mm

Borehole d1 4,5 mm

Borehole d2 9,46 mm

Countersink t 2,48 mm

Tolerance +/- 0.1 mm

Coating nickel-coated (Ni-Cu-Ni)

Magnetisation N35

Max. working temperature 80°C

Weight 4 g

1.When connecting two magnetic buttons, draw them close to each other slowly and gently. Hard crushing would cause damage and cracks in the magnetic material.

2.Circular Disc Magnets are made from Neo Neodymium Magnet material and have unbelievable magnetic performances.

Circular Disc Magnets can be fixed in place using adhesive or can be pushed into circular drilled holes in wood or plastic, many new packaging designs use Neodymium magnets cleverly trapped behind laminations of cardboard to provide invisible closing mechanisms for folders, gift boxes, name badges and even greetings cards than stick to your refridgerator!

About Neodymium Magnets:

Neodymium Iron Boron (NdFeB) magnets are composed of Nd, Fe, B, Dy, Co and other minor elements. They have excellent magnetic property and are extremely strong for their small size. NdFeB magnets are permanent, and have a high maximum energy product. Over the last 10 years, due to high ratio of performance over price, the NdFeB magnet has become extremely popular in almost all technology applications that require high performance magnets such as motors, sensors, computers, communications, medical equipment, meters, home appliances and so on.

Warning:

These magnets are not toys. Please do not give neodymium magnets to children under 5 years old. Small magnets pose a choking hazard, and can be lethal if swallowed. In addition, large magnets can easily pinch fingers. So always supervise children when playing with magnets and be sure they are aware of the dangers involved. Please keep magnets away from people who are wearing pacemakers or other medical devices. These magnets could also damage CRT monitors and TV’s
