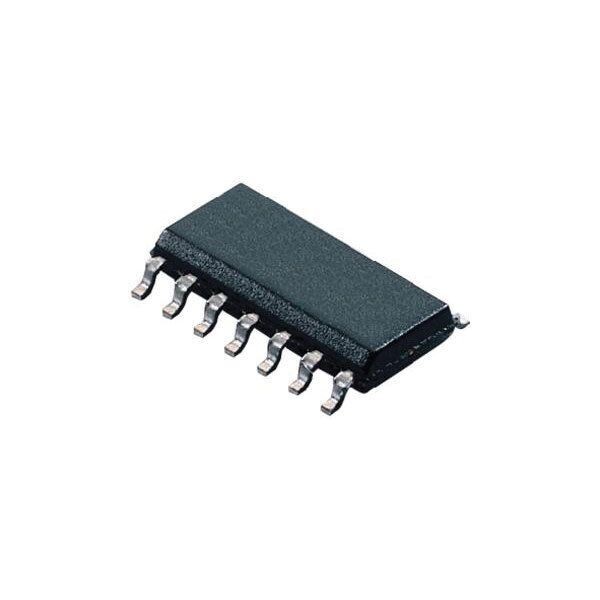

SMD 74HC74D 74HC74 Dual D-Type Flip-Flop with Set and Reset SOP-14

IC, 74HC CMOS, SMD, 74HC74, SOIC14

Flip-Flop Type: D

Propagation Delay: 14ns

Frequency: 76MHz

Output Current: 5.2mA

Trigger Type: Positive Edge

IC Output Type: Complementary

Supply Voltage Range: 2V to 6V

Logic Case Style: SOIC

No. of Pins: 14

Operating Temperature Range: -40°C to +125°C

SVHC: No SVHC (19-Dec-2011)

Base Number: 74

IC Generic Number: 74HC74

Logic Function Number: 7474

Logic IC Base Number: 7474

Logic IC Family: HC

Logic IC Function: Dual D-Type Flip-Flop with Set and Reset

Positive-Edge Trigger

No. of Gates: 2

No. of Inputs: 1

Operating Temperature Max: 125°C

Operating Temperature Min: -40°C

Output Type: Differential

Package / Case: SOIC

Supply Voltage: 5V

Supply Voltage Max: 6V

Supply Voltage Min: 2V

Termination Type: SMD
