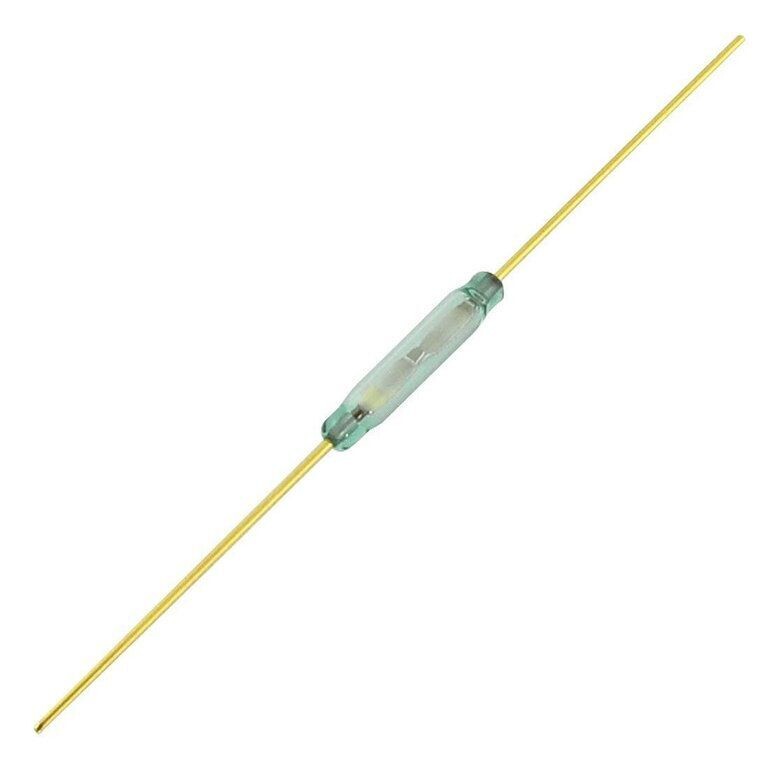

Reed Switch Glass N/O Low Voltage Current MKA14103

MKA-14103 Gold Tone Leads Glass N/O SPST Reed Switches 10-15AT

Maximum switching power: 10W

Maximum switching voltage: 100V

Maximum switching current: 0.5A

Maximum carrying current: 1.0A

Pull in: 10-35AT

Drop out: min. 5AT

Contact resistance, max. 0.1Ohm

Breakdown voltage: 220V dc min，250V dc max

Insulation resistance: min. 1010 Ohm

Operate time: max.1.0ms

Release time: max. 0.4ms

Capacitance: max. 0.7pF

Resonant frequency: min. 4000Hz

Operate temperature: range, 0C -60 ~ +155

High humidity: max. 98%

Operation frequency, max. 100Hz

Test coil:

Number of turns,5000

Resistance, 870Ohm
