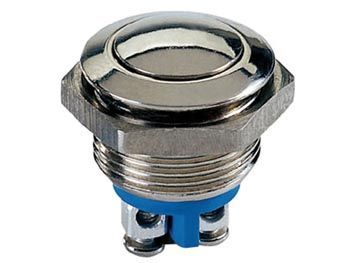

ROUND STAINLESS STEEL PUSH BUTTON SPST 1NO
+2

ROUND STAINLESS STEEL PUSH BUTTON SPST 1NO

Store / Electronic Components / Switches / Push Button Switches
€6.18
In stock: 3 available
Product Details

Product description

Specifications

  • OFF - (ON) - SPST
  • 48 VDC / 2 A
  • type: (on)-off
  • operating temperature: -20 °C ~ +70 °C
  • operating humidity: 45 ~ 85 % RH
  • insulation resistance: > 1000 Mohm
  • contact resistance: < 50 Mohm
  • contact material: silver alloy
  • mechanical life: 1 000 000 cycles
  • electrical life: 50 000 cycles
  • dielectric strength:
    • between terminals of the same pole: -
    • between terminals of different poles: 2000 VAC
  • body material: stainless steel
  • pressure: 5.5 N
  • IP rating: IP65
  • max. voltage:
    • -
    • 230 VAC / 0.5 A
  • mounting hole: Ø 19 mm
