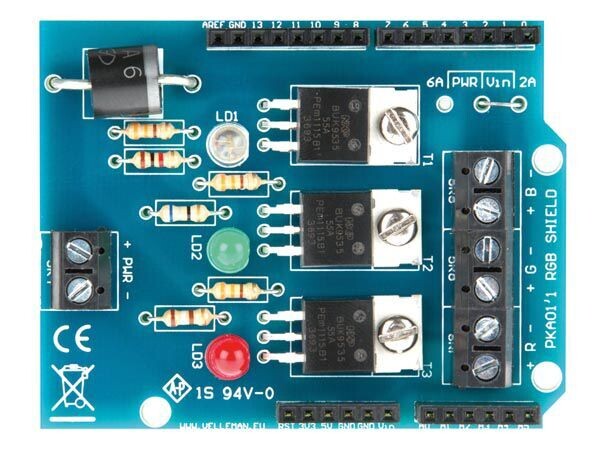

Velleman VMA01 RGB SHIELD FOR ARDUINO®

Control 3 dimmer channels (1 x RGB or 3 single channels) with Arduino UNO™.

Also available in kit version KA01

Features

downloadable example sketch

stackable design: the shield can be stacked with other shields

large user community

requires 1 Arduino UNO™ (not included)

Specifications

2 A load via Vin or 6 A load via external power

12 or 24 V external power supply

uses pin 3, 5, 6 PWM on an Arduino UNO™ board

dimensions: 75 x 55 x 25 mm / 2.95 x 2.16 x 0.98"
