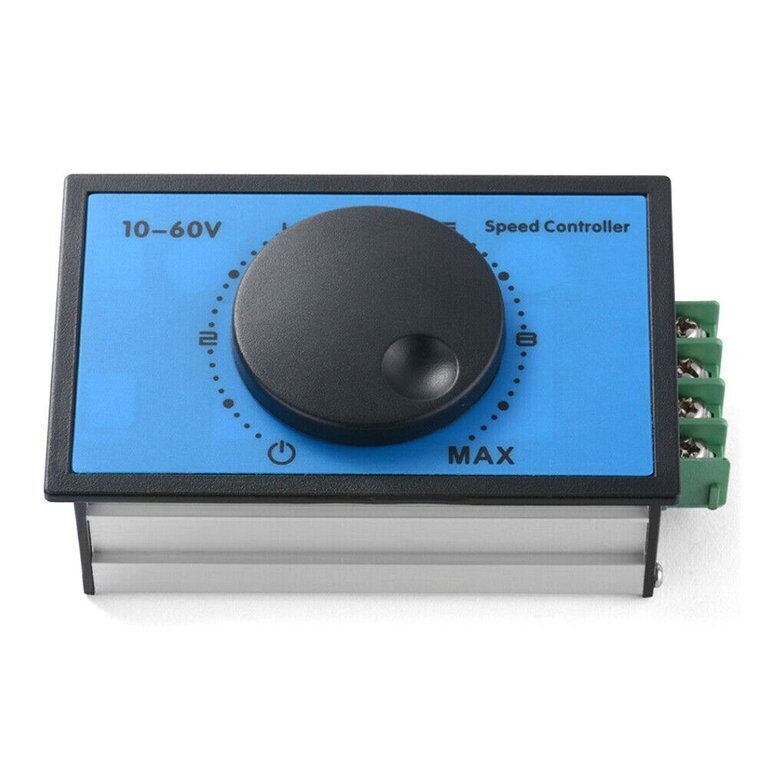

DC 10-60V 12V 24V 48V 20A PWM DC Motor Speed Controller Soft Start Switch

Features

Soft start: Can solve the damage caused by instantaneous high current to speed controller
Blocking protection (20A current limited): Limit the high current produced by the blocking of the motor
Panel switch control, more easy to control the speed for the project

Specification
Input voltage: DC 10-60A (The specific voltage must be the same as the rated voltage of the motor)
Output voltage: Linear output under load
Support motor: DC brush motor
Output current: Max 20A (Limited value 20A)
Continuous working current: within 18A
Max power: 240W
Regulating type: regulating current
Regulating method: potentiometer (270° linear)
Regulating speed range: 0-100%
Control frequency: 15KHZ
Knob: 10K (with switch)
Size: 95mm*60mm*32mm
Panel mounting: 88mm*55mm
