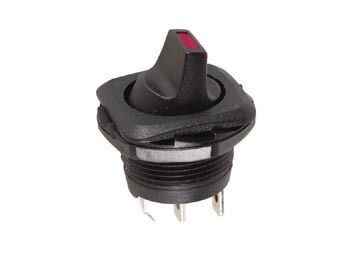

Specifications

• type: ON-OFF SPST
• cap: red
• remark: with red LED light 2 V at 10 mA (a current limiting resistor has to be used)
• contact rating: 5A/250Vac, 10A/125Vac
• drill Ø: 20mm
• electrical life: 10000 actuations at full load
• mechanical life: 50000 operations
• contact resistance: <20ohm
• insulation resistance: 1000Mohm
• dielectric strength:
  • >1500V: 1 minute
  • >3000V: between poles
• operating temperature: -30°C to +85°C
• materials:
  • housing: 66 nylon (UL94V-2)
  • actuator: 66 nylon (UL94V-2)
  • movable contacts: copper, silver-plated
  • stationary contacts: copper, silver-plated
  • terminals: copper, silver-plated
  • contact: spring-loaded
