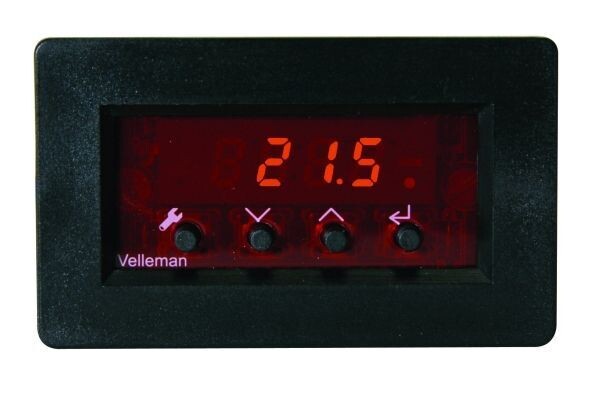

Velleman VM148 PANEL THERMOSTAT MODULE

Features

general purpose panel mount thermostat

usable for heating or cooling purposes, (central heating, airco, incubator,… )

separate output-ON and output-OFF setting (hysteresis)

direct manual temperature adjustment

bright red LED read-out

comes with easy board-to-wire connectors and sensor (20cm wire)

calibrate option

under- and overflow indication

Specifications

temperature range:

°C: -18°C ~ + 60°C

°F: 0°F ~ +146°F

temperature resolution: ± 0.5°C or ± 2°F

accuracy: +/- 2°C, fine tune till +/- 0,5°C

readout update interval: 1 second

relay contact: NO - 3A (max. 230V)

power supply: 9 - 12V DC

power consumption: < 70mA

dimensions:

panel module: 67x40.5 mm / 2.6x1.6"

cut-out: 54x37 mm / 2.1x1.5"

mounting depth: 40mm / 1.6"

weight: 50g
