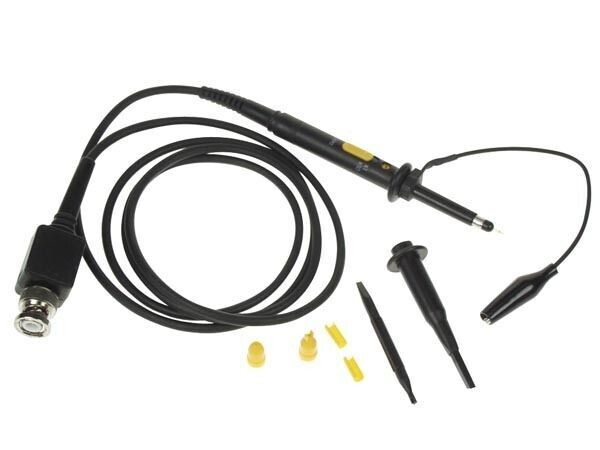

Velleman PROBE250 OSCILLOSCOPE PROBE 250MHz

Features

complete probe set, for measurements up to 250MHz

attenuation: 1:1 or 1:10

safety: conform to IEC-1010 cat II

Specifications

position x1:

attenuation: 1:1

bandwidth: DC to 10MHz

rise time: 35ns

input resistance: 1Mohm (input resistance scope)

input capacitance: cap. scope 46pF

working voltage: 600Vdc incl. peak AC derating with frequency

position REF: tip disconnected, scope input at ground

position x10:

attenuation: 1:10

bandwidth: DC to 250MHz

rise time: 1.4ns

input resistance: 10Mohm (if scope input = 1Mohm)

input capacitance: ± 11pF

working voltage: 600Vdc incl. peak AC derating with frequency

compensation range: 10 to 35pF

cable length: 1.2m
