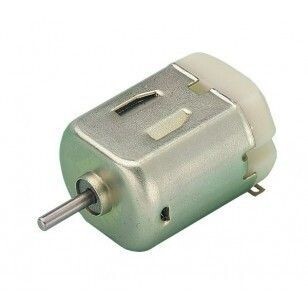

2543 Kitronik Miniature Low Torque Flat DC Motor

MM10 3V DC motor, operating voltage 1.5V to 4.5V. The two flat sides enable easy mounting onto a panel or PCB. Typical speed 12400 RPM, typical current 1.5A.

See our Motor Holders Plastic Mounting Clips for this product.

Physical characteristics:
Length: 25mm.
Height: 15.1mm.
Diameter: 20mm.
Axle Length: 8.1mm.
Axle Diameter: 2mm.
Weight: 19g.
Electrical characteristics:
Rated Voltage: 3V.
Operating Voltage: 1.5V - 4.5V.
No Load Speed: 16000RPM.
No Load Current: 0.4A.
Speed at Maximum Efficiency: 12400RPM.
Current at Maximum Efficiency: 1.5A.
