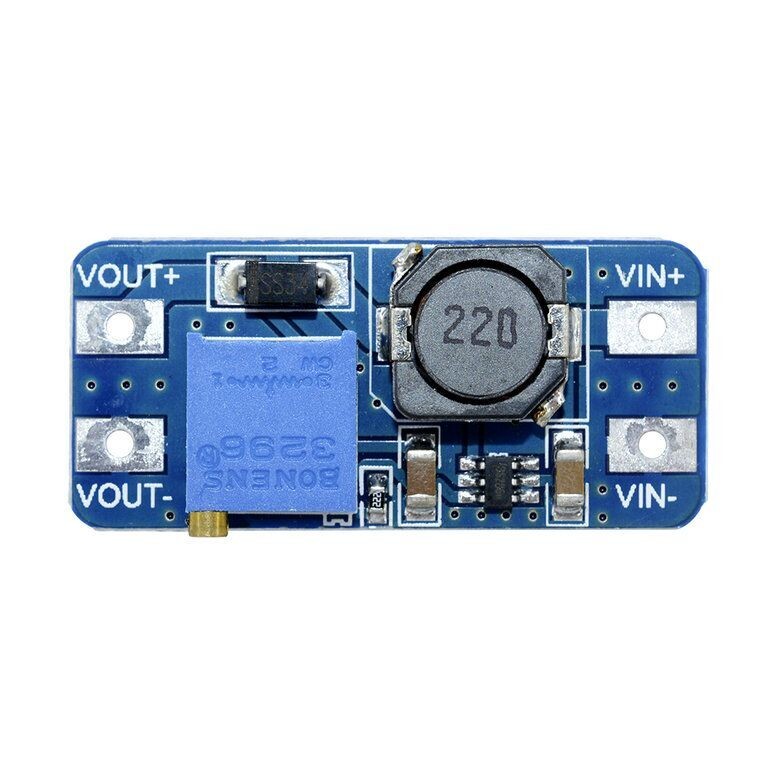

MT3608 2A DC-DC Step Up Power Apply Module Booster Power Module for Arduino

PLEASE NOTE: To increase voltage turn the pot anti-clockwise. You may need to turn up to 40-50 turns anti-clockwise until you feel resistance then turn clockwise to lower to the desired voltage.

1.Electrical characteristics
1). The maximum output current: 2 a
2). The input voltage: 2 v ~ 24 v
3). The maximum output voltage: 28 v
4). Efficiency: >93%
5). (Minimum) (input-output) difference voltage when input is at
(2V and 50% of max-input-V), loading at (50% and 100% rated current).
2.Mechanical properties
1). product size: 36 mm * 17 mm * 14 mm
3.Method of use
The module of the IN+ and - after 2~24v, IN adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage
PLEASE NOTE:
1). The input voltage should not exceed the maximum input voltage
2). The peak current output current 2Amp (EXPECT NO MORE THAN 400mA)
