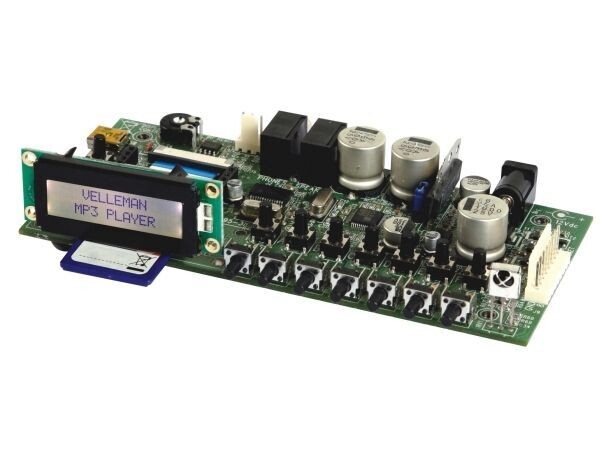

Velleman VM8095 MP3 PLAYER BOARD

Create your own home audio system, jukebox, jingle player, audio messages, sound effects, … MP3, where you want and how you want it!

Features

SD card operation (SD card not included)

high-quality VLSI decoder

7 user definable preset buttons with external connection

play-pause, next, previous, search

volume control

random and shuffle

8 different preset sound modes

6 play modes: All, Folder, At power-on...

on-board infrared receiver

on-board power amplifier

line or phones output: 3.5mm jack

direct stereo speaker output: 3.5mm jack

mono operation is possible

optional:

RF receiver module: RX433N

power adaptor: PSS1215

RF remotes: for EU and US

8-channel RF remote transmitter: VM118R (mounted)

8-channel RF remote control: K8058 (Kit-version)

RF remotes: only for EU

4-channel desktop transmitter: VM160DT

4-channel transmitter: VM160T

IR remotes:

15-channel IR transmitter: K8049 (Kit-version)

Specifications

suitable for SD and SDHC cards

tested up to 32GB cards

supports ID3 TAG information: Title, Artist Name, Album Name and Year are displayed on the 2-line 16 char. LCD

supports folders to one level deep

up to 1024 folders, each containing up to 16384 songs

equalizer settings: Flat , Loudness, Heavy, Clear, Soft, Disco, Live and Hall

decodes MP3 (MPEG 1.0 & 2.0 audio layer III (CBR, VBR, ABR), Till 320kbit/s. Fraunhofer IIS and Thomson licensed

amplifier: 2x 5Wrms @ 4ohm

power supply: 12Vdc/1A

dimensions: 132 x 62mm / 5.2 x 2.45"

Data Sheet
