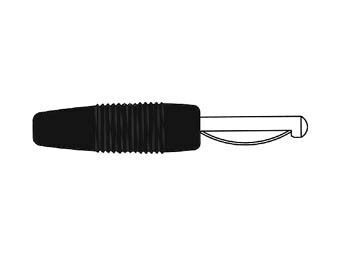

MATING CONNECTOR 4mm WITH SCREW / BLACK

Product description

Fully mating shatterproof connector with flexible insulating sleeve. The tapering sleeve end also serves as kink protection for the lead. Screw connection for cables with a cross section of max. 1.5mm². Nickel-plated brass contact material.

Specifications

Physical properties

Finish Nickel-plated

Dual connection

Dual plug

Insulated tip

Plug size 4 mm

Electrical data

Current rating 16 A

Resistance 3 milliohm

Environmental data

Operating temperature -25-70 °C

Operational properties

Stackable

Connections

Maximum wire size mm² 1.5 mm²

Electrical connections

Connection 1 gender Male

Connection 2 gender Female

Plug type Banana

IT connections

Connection type Screwed

Power supply

Voltage rating 60 V

Product basic info

Colour Black

Width 51 mm

Weight 4.5 g

Diameter 10 mm
