TEXAS INSTRUMENTS LM567CN IC, TONE DECODER, DIP8, 567

The Texas Instruments NE567V tone decoder uses a simple RC combination to set the centre detection frequency. A small number of other external components set the bandwidth and output delay. Applications include touch tone decoding, precision oscillator, frequency monitoring and control, wide band FSK demodulation, ultrasonic controls, carrier-current remote controls and communications paging decoders. See the datasheet for precision oscillator schematics using this part.

20 to 1 frequency range with an external resistor

Logic compatible output with 100 mA current sinking capability

Bandwidth adjustable from 0 to 14%

High rejection of out of band signals

Immunity to false signals

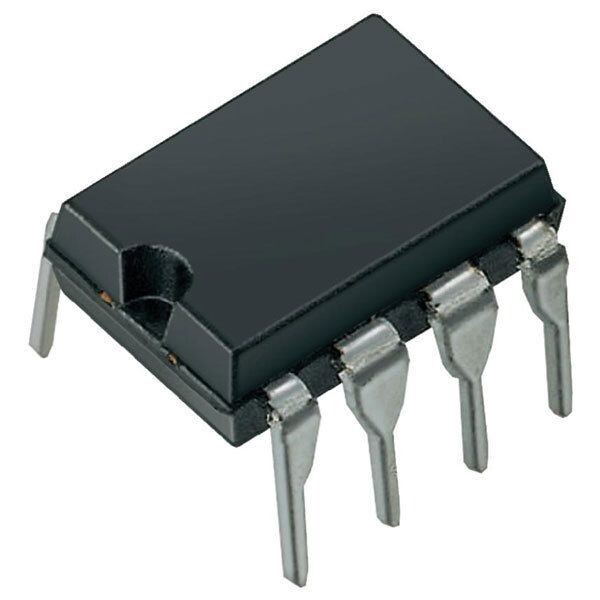

DIL-8 package
