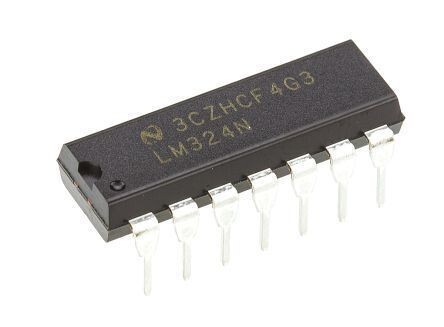

LM324N LM324 324 Low Power Quad Op-Amp

Specifications

Attribute Value

Amplifier Type Precision

Mounting Type Through Hole

Package Type MDIP

Power Supply Type Dual, Single

Number of Channels per Chip 4

Pin Count 14

Typical Single Supply Voltage 5 → 28 V

Typical Gain Bandwidth Product 1MHz

Typical Dual Supply Voltage ±12 V, ±15 V, ±3 V, ±5 V, ±9 V

Typical Slew Rate 0.5V/µs

Maximum Operating Temperature +70 °C

Minimum Operating Temperature 0 °C

Typical Input Voltage Noise Density 40nV/√Hz

Dimensions 19.05 x 6.35 x 3.3mm

Length 19.05mm

Height 3.3mm

Rail to Rail No

Width 6.35mm

Typical Voltage Gain 100 dB
