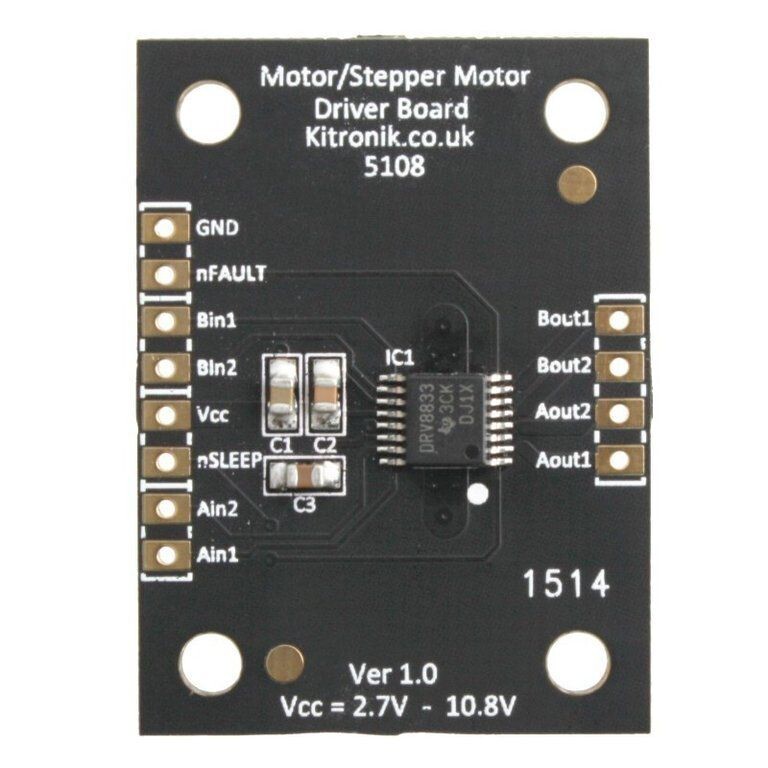

This board has the ability to drive 2 DC motors or 1 stepper motor. Providing up to 2A peak per channel at 7V, it's great for bringing movement to your project.

This circuit uses the DRV8833 and allows up to 2 DC motors or 1 stepper motor to be controlled by a microprocessor. This is useful as a microcontroller cannot, on its own, output enough power to drive most motors. Using this board you can control motor with digital outputs (two per motor) from your microcontroller while powering it separately from a suitable power source.The motor driver operates off a wide power supply (2.7-10.8V) and can provide up to 1.5A per output or 3A if the motor is connected to both outputs in parallel. Depending upon the state of the two control lines, the motor can be controlled to coast, reverse, go forward & brake.

The board can easily be connected to a microcontroller and will operate at 3V or 5V.

Features:

Drives two motors or one stepper motor.

1.5A per channel.

Contents:

1 x Motor/Stepper Driver Breakout Board.

Possible applications include:

Robotics.

Dimensions:

Length: 38mm.

Width: 28mm.

Height: 3mm.

Connections:

Vcc: Supply Voltage (0-10.8V)

GND: Ground

nSLEEP: Sleep mode pin (Bringing this low enters the device into sleep mode)

xINx: Control, logic inputs (AIN1, AIN2, BIN1, BIN2)

xOUTx: Motor outputs (AOUT1, AOUT2, BOUT1, BOUT2)

Physical characteristics:

Length: 38mm.

Width: 28mm.

Height: 3mm.

Electrical characteristics:

Min supply voltage: 2.7V

Max supply voltage: 10.8V

Max output current (continuous): 1.5A

Max output current (peak): 2.0A

Max PWM frequency: 250 kHz

Logic level input voltage: -0.3V to 5.75V

Data Sheet
