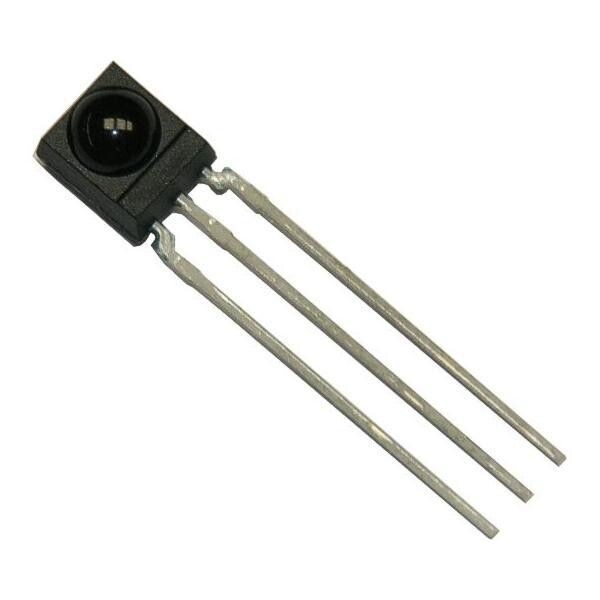

IR Receiver Infrared Radiation Module 38 kHz Remote TSOP4838 DIP-3

The TSOP4838 from Vishay is a miniaturized IR receiver module for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. This device is widely used for remote controlling.
Photo detector and preamplifier in one package
Internal filter for PCM frequency
Improved shielding against EMI
Supply voltage range from 2.5V to 5.5V
Transmission range of 45m
Improved immunity against ambient light
Carrier frequency of 38KHz
Directivity of 45°
Supply current of 950µA
Operating temperature range from -25°C to 85°C
