INSULATED HV SCOPE PROBE 60MHz/1200VDC

€54.76
In stock: 1 available
Product Details

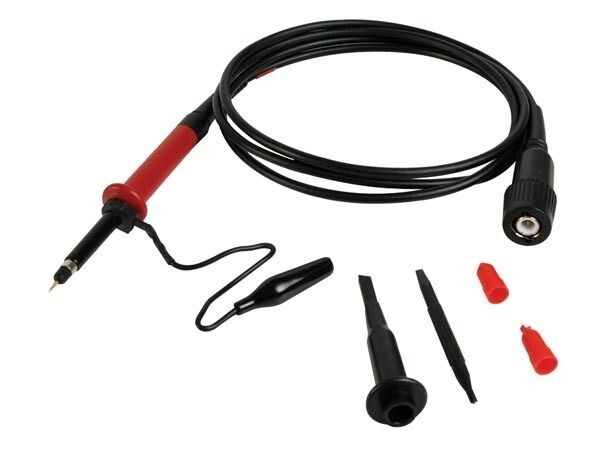

Velleman PROBE60HV INSULATED HIGH VOLTAGE SCOPE PROBE 60MHz/1200VDC

Features

complete probe set

safety: conform with IEC-61010-2-031, 1200VDC + peak AC, cat I & 600VDC cat III

attenuation: x100

Specifications

attenuation: x100

bandwidth: DC to 60MHz

rise time: 5.8ns

input resistance: 100Mohm (input resistance scope = 1Mohm)

input capacitance: ±6.5pF

working voltage: 1200Vdc incl. peak AC

compensation range: 10 to 50pF

cable length: 1.3m

remarks: with insulated BNC connector
