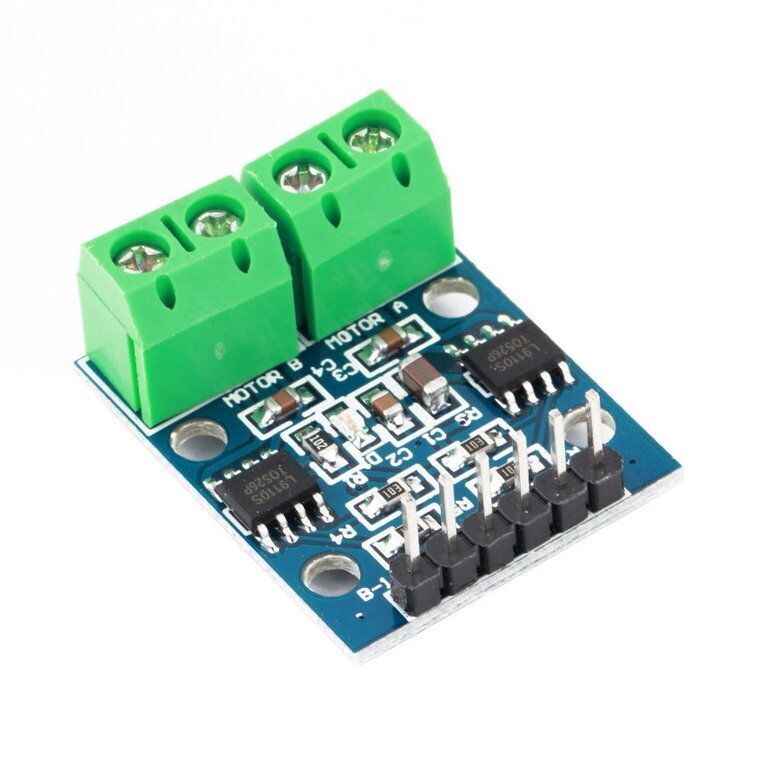

L9110S H-bridge Stepper Motor Dual DC motor Driver Controller Board

Feature:

Onboard two the L9110S motor control chip

the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor

the 800mA continuous current output capability per channel

Low static work current

Each channel has 800mA continuous current output

Low saturation pressure drop

TTL/CMOS output level compatible, can be connected directly to the CPU

Output built-in clamping diode, apply to the perceptual load

Control and drive integrate in IC

Have pin high pressure protection function

Specifications:

Working temperature: 0-80 ¡æ

Size:29.2(mm)x23(mm)

the module input voltage :2.5-12V

Power supply voltage: DC2.5-12V

Net weight: 6g

Package weight: 16g
