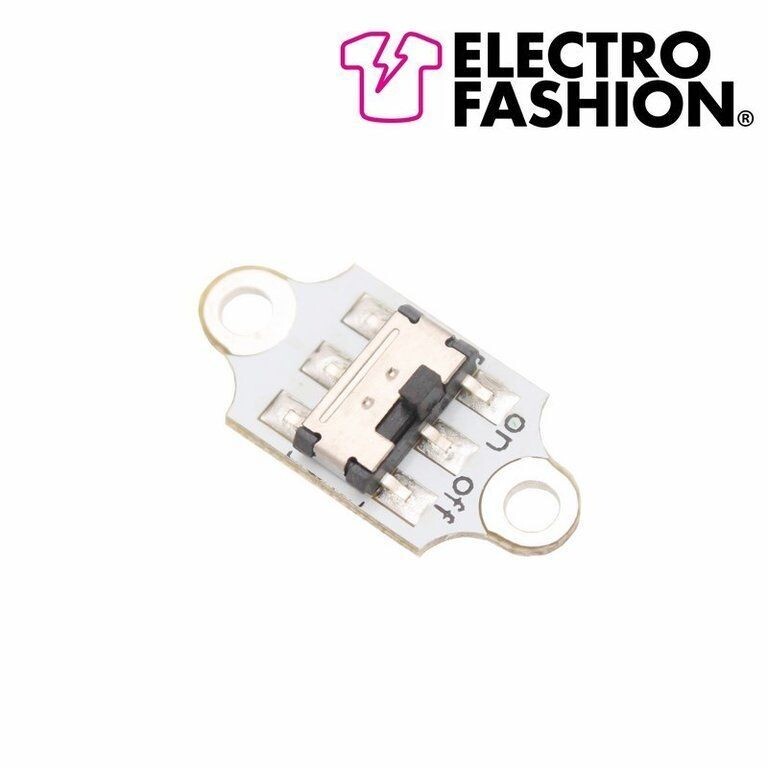

Electro-Fashion, Slide Switch

This Sewable Slide Switch allows LEDs to be turned on or off in your E-Textiles project. It has 2 connection points to which the conductive thread is connected.

This sewable two position miniature slide switch from Kitronik allows LEDs to be turned on or off in your e-textiles projects.

It has two connection points to which the conductive thread is connected. The PCBs are double sided making the conductive thread connection very reliable (see example picture below).

Features:

Double Sided PCBs for reliable connections.

Contents:

1 x Ultra Slim Slide Switch.

Dimensions:

Length: 18mm.

Width: 8.5mm.

Height: 4mm.

Physical characteristics:

Length: 18mm.

Width: 8.5mm.

Height: 4mm.

Electrical characteristics:

Maximum Switch Rating Voltage DC: 6V.

Maximum Switch Rating Current: 0.03A (30mA).

Data Sheet
