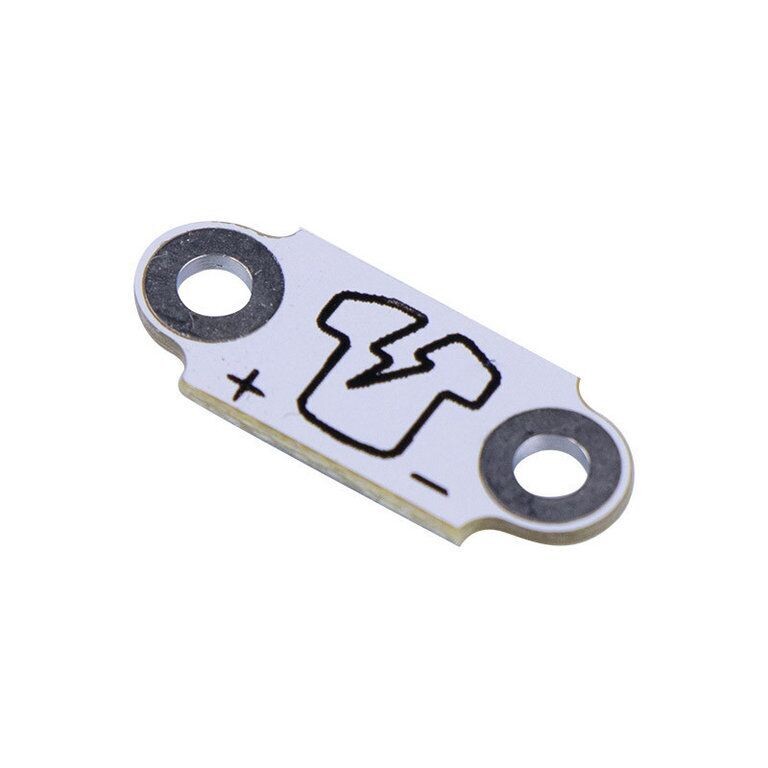

Electro-Fashion, LED Board, Yellow

These yellow coloured ultra slim E-Textile LEDs are illuminated continuously when powered. They have connections to which the conductive thread can be connected

Product Description
These ultra slim, pre-mounted e-textile LEDs from Kitronik run off a 3V coin cell battery and are illuminated continuously when powered.

They have connections to which the conductive thread can be connected. These are clearly marked with '+' and '-' to indicate which is the positive and which is the negative connection.

The PCBs are double sided making the conductive thread connection very reliable (see example picture below).

Features:

Ultra Slim Sewable LEDs.
Double Sided PCBs for reliable connections.
Clearly marked '+' and '-' connections.

Dimensions:

Length: 15mm.
Width: 6.5mm.
Height: 2.7mm.

Resources:

E-Textiles Tutorials & Resources.
