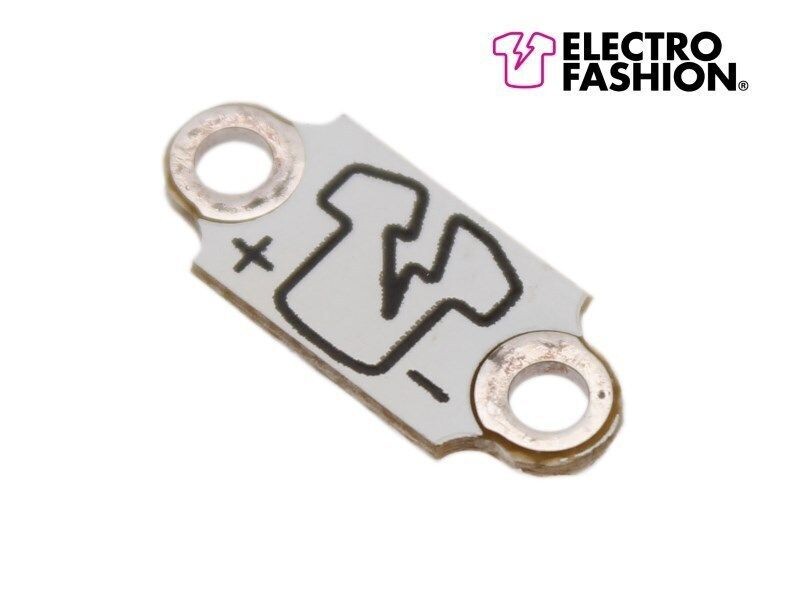

Electro-Fashion, LED Board, White

These white coloured, ultra slim E-Textile LEDs are illuminated continuously when powered. They have connections to which the conductive thread can be connected

These ultra slim, pre-mounted e-textile LEDs from Kitronik run off a 3V coin cell battery and are illuminated continuously when powered.

They have connections to which the conductive thread can be connected. These are clearly marked with '+' and '-' to indicate which is the positive and which is the negative connection.

The PCBs are double sided making the conductive thread connection very reliable (see example picture below).

Features:

Ultra Slim Sewable LEDs.

Double Sided PCBs for reliable connections.

Clearly marked '+' and '-' connections.

Individual LED (ready to use).

Dimensions:

Length: 15mm.

Width: 6.5mm.

Height: 2.7mm.

Physical characteristics:

Length: 15mm.

Width: 6.5mm.

Height: 2.7mm.

Lens Type: Water Clear.

Viewing Angle: 120 degrees.

Electrical characteristics:

Nominal Operating Voltage: 3V.

Luminous Intensity: 1600 - 1800mCd (@20mA).

Data Sheet
