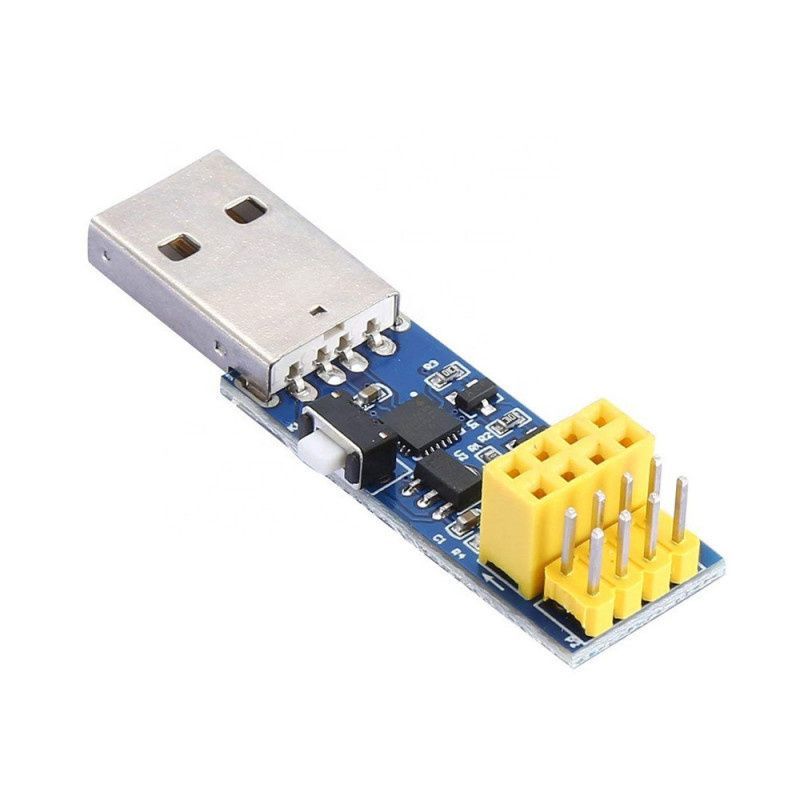

ESP-01 ESP-01S ESP8266 WIFI Module Adapter Download Debug Link For Arduino

Description:
The downloader specially designed for ESP-01S, support Arduino IDE a key to download and secure can ESP8266 Flasher!

The downloader designed specifically for security can ESP-01S design a key upgrade firmware dedicated downloader, support Arduino IDE a key to download and secure ESP8266Flasher and Le Xin FLASH_DOWNLOAD_TOOLS

The ESP-01/ESP-01S USB Adapter enables easy programming and debugging of the ESP8266 WiFi module using the Arduino IDE, featuring auto-download capabilities via the CP2104 chip. It acts as a USB-to-UART bridge, eliminating the need for jumper wires and manual reset buttons to switch between running and programming modes

Key Features and Usage:

One-Click Upload: Designed to work with Arduino IDE, ESP8266Flasher, and Espressif FLASH_DOWNLOAD_TOOLS without manual interaction.

Automatic Bootloader: The adapter handles GPIO0 manipulation, allowing the ESP-01/ESP-01S to enter download mode automatically.

Direct USB Interface: Plugs directly into a USB port for serial debugging and firmware flashing, utilizing the CP2104 or CH340G USB to serial converter.

Hardware Compatibility: Specifically designed for the ESP-01 and ESP-01S modules, ensuring proper pinout connections

Steps for Use with Arduino IDE:

Install Drivers: Ensure CH340 or CP210x drivers are installed on your computer.

Board Setup: In Arduino IDE, add http://arduino.esp8266.com/stable/package_esp8266c... to Additional Boards Manager URLs, then install the ESP8266 platform.

Select Board: Choose "Generic ESP8266 Module" (or specifically ESP-01 if available) in Tools > Board.

Connect: Plug the ESP-01/01S into the adapter and connect to USB.

Program: Select the corresponding COM port and click Upload. The adapter automatically manages the flashing process
