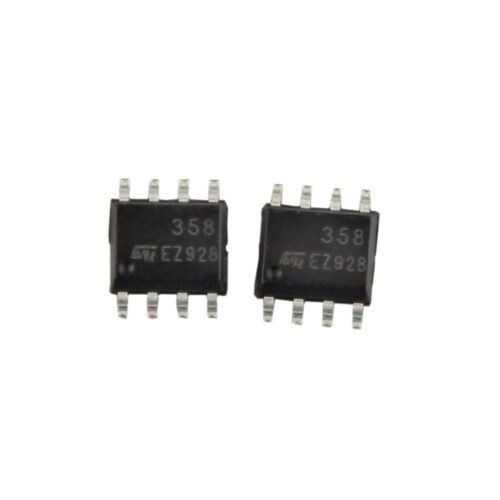

Operation Dual Low Power Amplifier LM358DT SMD IC

Amplifier Case Style: SOIC

Bandwidth: 1.1MHz

MSL: MSL 1 - Unlimited

No. of Amplifiers: 2

No. of Pins: 8

Op Amp Type: Low Power

Operating Temperature Max: 70°C

Operating Temperature Min: 0°C

Packaging: Cut Tape

SVHC: No SVHC (17-Dec-2014)

Slew Rate: 0.6V/µs

Supply Voltage Range: 3V to 30V

Amplifer Supply Voltage: 3V to 30V

Base Number: 358

Input Offset Voltage Max: 7mV

Operating Temperature Range: 0°C to +70°C

Output Current + Max: 60mA

Supply Voltage + Nom: 32V

Supply Voltage Max: 30V

Supply Voltage Min: 3V

Data Sheet
