Product description

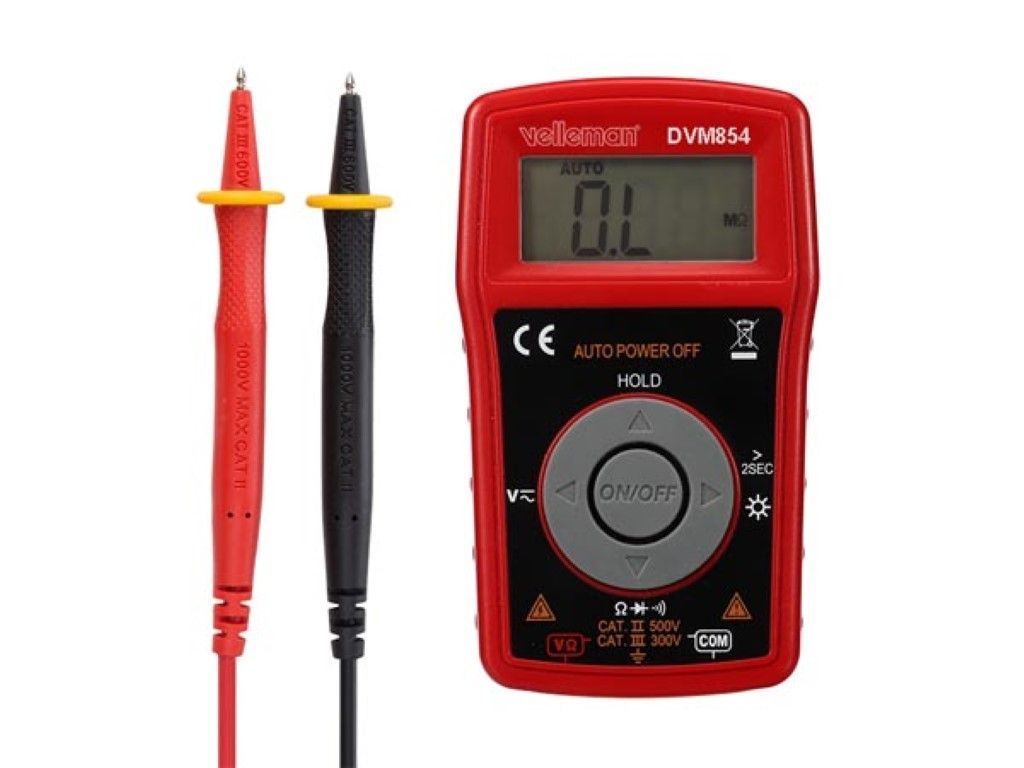

Digital multimeter, suitable for measuring DC current, AC/DC voltage, resistance, including test leads

Multimeters are small meters that do not cost much, but can save costs by detecting sources of error.Whether you are a professional who works with electronics on a daily basis or an enthusiastic DIYer who likes to DIY, this digital multimeter offers reliable and accurate results.The multimeter is equipped with several functions, including measuring voltage and resistance. The large backlit display ensures good readability even in poor lighting conditions. A vibration alarm indicates when readings are available. Moreover, it comes with separate measurement leads, so you can get started right away. The multimeter switches off automatically when not in use.

+ Built-in data hold function: This function allows you to easily hold and read measured values even after disconnecting the measurement leads. This ensures accurate and reliable measurements.

+ High accuracy with 2000 counts : This multimeter offers high accuracy in measuring various electrical values such as voltage (volts) and resistance (ohms).

+ Safe electrical measurements : The instrument complies with safety category CAT II 500 V / CAT III 300 V for increased safety.

+ Automatic: Automatic range setting.

+ Backlight : A large backlit display ensures good readability even in poor lighting conditions.

• This multimeter is not suitable for AC current measurements.

Specifications

Product basic info
Instruction manual languages	Dutch, English, French, German, Polish, Portuguese, Spanish
Primary colours	Red
Additional colours	Black
Depth unit	125 mm
Height unit	25 mm
Width unit	75 mm
Weight unit	110 g
Material	ABS

Physical properties
Display type	LCD
Backlight
Maximum digits display	3.50

Electrical data
Lamp type	Led
AC voltage	basic accuracy (AC voltage): ± (0.8 % rdg + 3 digits) input impedance (AC voltage): 10 Ohm overload protection (AC voltage): 500 V DC or AC RMS frequency range: 40-500 Hz display (AC voltage): RMS of sine wave value (average value)
Audible continuity measurement
Audible continuity	audible continuity measurement: built-in buzzer sounds of resistance is less than 50 Ohm
Automatic polarity indication
DC voltage	basic accuracy (DC voltage (manual range)): ± (0.5 % rdg + 2 digits ) input impedance (DC voltage (manual range)): 10 Mohm overload protection (DC voltage (manual range)): 500 V DC or AC RMS
Diode test
Continuity test
True rms
AC voltage measurements	0-2 V, 20 V, 200 V, 500 V
DC voltage measurements	0-200 mV, 20 V, 200 V, 2000 mV, 500 V
Frequency measurements	40-500 Hz
Resistance measurements	20 MOhm

Technical data
Safety rating	CAT II / 500 V, Cat III / 300 V
Voltage tester type	AC
Automatic power-off function
Pollution degree	2
Data-hold function
Accuracy specifications	accuracy: ± (a% reading + b digit)

Environmental data
Usage location	Indoor & outdoor
Range Temperature range	18-28 °C
Operating temperature °C	18-28 °C

Operational properties
Maximum relative humidity	< 80 %
Range setting	Automatic

Power supply
Batteries included
Number of batteries	2
Battery composition	Alkaline
Battery IEC size	AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)

Included
with LED light
Set contents	TLM73:PVC TEST LEAD SET - CAT III 600 V - 12 A - 18 AWG - LENGTH 70 cm
