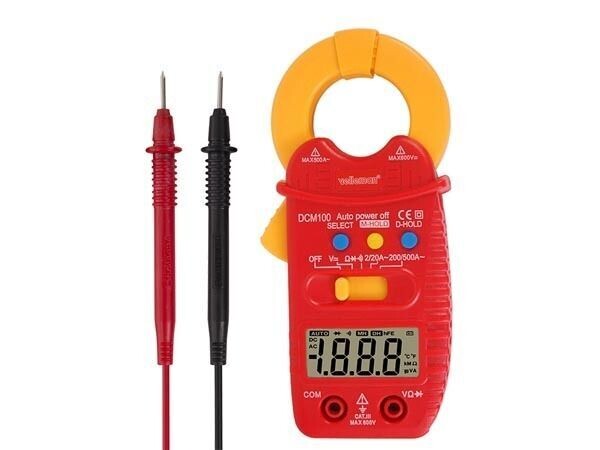

DIGITAL CLAMP METER - CAT III - 600 V - AC - with data-hold function

Product description

Features

LCD display with automatic negative polarity indication

auto range control

data-hold function

AC and DC voltage measurements up to max. 600 V

AC current measurement up to max. 500 A

max. Ø for conductor: 22 mm

resistance measurements: max. 20 Mohm

diode test, continuity test

safety: indoor use only (overvoltage CAT III 600 V)

Important safety information

Specifications

DC voltage: 0.2 / 2 / 20 / 200 / 600 V

basic accuracy: ± (0.8% of rdg + 3 digits) for 0.2 V range / ± (1.2% of rdg + 3 digits) for 2 V ~ 600 V range

input impedance: 10 Mohm

maximum input: 600 V

AC voltage: 2 / 20 / 200 / 600 V

basic accuracy: ± (1.5% of rdg + 3 digits) for 2 V ~ 200 V range / ± (1.5% of rdg + 5 digits) for 600 V range

input impedance: 10 Mohm

frequency range: 50-60 Hz

maximum input: 600 V

DC current: -

basic accuracy: -

overload protection: -

AC current: 2 / 20 / 200 / 500 A

basic accuracy: ± (4.0% of rdg + 10 digits) for 2 A range / ± (2.5% of rdg + 5 digits) for 20 A ~ 500 A range

overload protection: -

resistance: 200 / 2K / 20K / 200K / 2M / 20M

basic accuracy: ± (1.0% of rdg + 2 digits) for 200 ohm range / ± (1.5% of rdg + 2 digits) for 2 K ~ 2 M range / ± (2.0% of rdg + 3 digits) for 20 M range

overload protection: 15 s max. 250 V (all ranges)

capacitance: -

accuracy: -

inductance: -

accuracy: -

frequency: -

basic accuracy: -

overload protection: -

temperature: -

basic accuracy: -

overrange: yes "OL"

continuity buzzer: yes

transistor test: -

diode test: yes

low-battery indication: yes

maximum display: 1999

LCD display size: 18 x 39 mm

ranging mode: auto/manual

data hold: yes

backlight: -

dimensions: 131.5 x 61 x 24.8 mm

weight: 135 g

power supply: 3 x 1.5 V AAA LR03 battery (incl.)

packaging: box

accessories: manual / test leads / battery

auto power-off: yes
