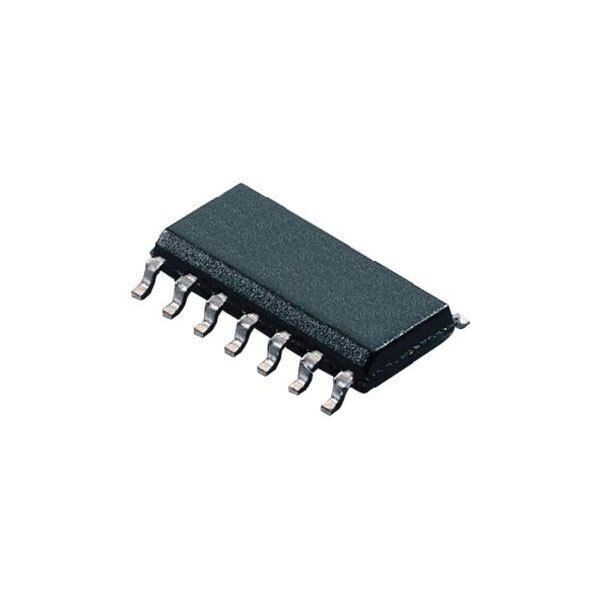

SMD CD4541 4541 CD4541BM 4000 CMOS Programmable Timer SOP-14

LOGIC, PROGRAMMABLE TIMER, 14SOIC

No. of Timers: 1

Clock External Input: Yes

Frequency: 6MHz

Supply Voltage Range: 3V to 18V

Digital IC Case Style: SOIC

No. of Pins: 14

Operating Temperature Range: -55°C to +125°C

SVHC: No SVHC (19-Dec-2011)

Clock Frequency: 6MHz

Clock Frequency Max: 6MHz

Count Max: 16

Logic Case Style: SOIC

Logic IC Base Number: 4541

Logic IC Family: CD4000

Logic IC Function: Programmable Timer

Package / Case: SOIC

Supply Voltage Max: 18V

Supply Voltage Min: 3V

Termination Type: SMD
