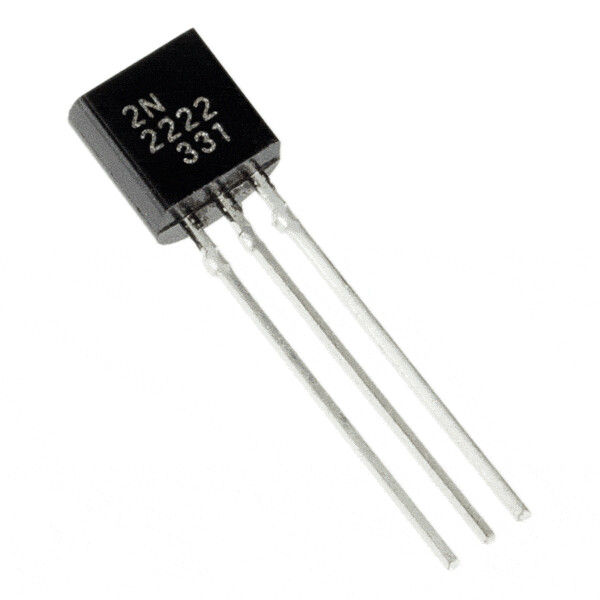

2N2222 - Bipolar (BJT) Single Transistor, NPN, 30 V, 250 MHz, 500 mW, 800 mA, 100 hFE

The 2N2222 is a common NPN bipolar junction transistor (BJT) used for general purpose low-power amplifying or switching applications. It is designed for low to medium current, low power, medium voltage, and can operate at moderately high speeds.

Transistor Type NPN

Current - Collector (Ic) (Max) 600mA

Voltage - Collector Emitter Breakdown (Max) 30V

Vce Saturation (Max) @ Ib, Ic 1.6V @ 50mA, 500mA

Current - Collector Cutoff (Max) 10nA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 10V

Power - Max 500mW

Frequency - Transition 250MHz

Operating Temperature 175°C (TJ)

Mounting Type Through Hole

Package / Case TO-206AA, TO-18-3 Metal Can

Supplier Device Package TO-18

Base Part Number 2N2222

Data Sheet
