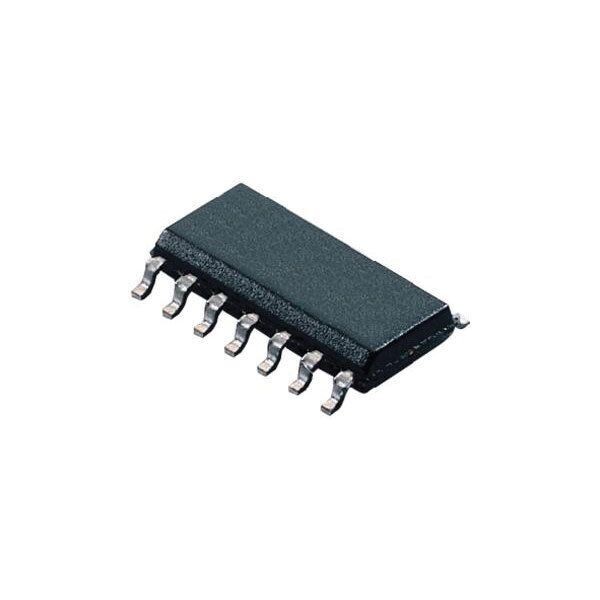

SMD 74HC4066 744066 74HC4066D Quadruple Bilateral Switch SOP-14 QC

74HC CMOS, SMD, 74HC4066, SOIC14

Analogue Switch Type: Bilateral

No. of Channels: 4

On State Resistance Max: 105ohm

Turn Off Time: 13ns

Turn On Time: 11ns

Supply Voltage Range: 2V to 10V

Operating Temperature Range: -40°C to +125°C

Analogue Switch Case Style: SOIC

No. of Pins: 14

SVHC: No SVHC (19-Dec-2011)

Base Number: 74

IC Generic Number: 74HC4066

Logic Case Style: SOIC

Logic Function Number: 744066

Logic IC Base Number: 744066

Logic IC Family: HC

Logic IC Function: Quadruple Bilateral Switch

No. of Gates: 4

No. of Inputs: 1

On Resistance Rds(on): 2ohm

On State Resistance Max: 88ohm

Operating Temperature Max: 125°C

Operating Temperature Min: -40°C

Output Current: 32mA

Package / Case: SOIC

Power Dissipation Pd: 500mW

Power Dissipation Pd: 500mW

Supply Voltage: 5V

Supply Voltage Max: 6V

Supply Voltage Min: 2V

Switch Type: Bilateral Switch

Termination Type: SMD
