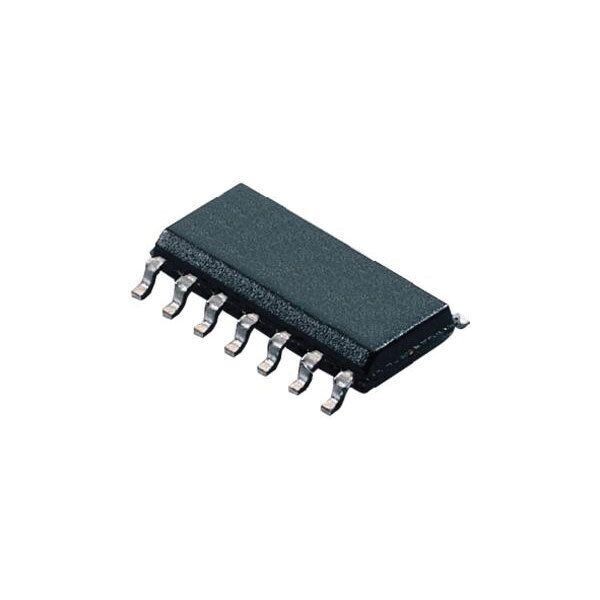

SMD 74HC04D 7404 74HC04 Hex Inverter SOP-14

IC, 74HC CMOS, SMD, 74HC04, SOIC14

Logic Type: Inverter

Output Current: 5.2mA

No. of Inputs: 1

Supply Voltage Range: 2V to 6V

Logic Case Style: SOIC

No. of Pins: 14

Operating Temperature Range: -40°C to +125°C

SVHC: No SVHC (19-Dec-2011)

Base Number: 74

IC Generic Number: 74HC04

Logic Function Number: 7404

Logic IC Base Number: 7404

Logic IC Family: HC

Logic IC Function: Hex Inverter

No. of Gates: 6

Operating Temperature Max: 125°C

Operating Temperature Min: -40°C

Output Current Max: 5.2mA

Package / Case: SOIC

Supply Voltage: 5V

Supply Voltage Max: 6V

Supply Voltage Min: 2V

Termination Type: SMD
