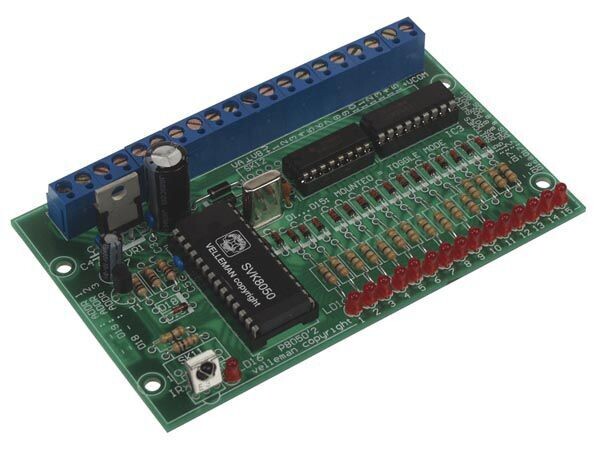

Velleman VM122 15-CHANNEL IR RECEIVER

Features

works together with our VM121 transmitter

4 different output modes

15 independent outputs

15 radio (rotary simulation) outputs

7 independent outputs & 8 rotary outputs

7 rotary outputs & 8 rotary outputs (independent from each other)

allows the use of multiple receivers in one room

Specifications

power supply: 8 -14VDC or 2x6 to 2x12VAC (150mA)

15 open collector contacts: max. 50V/50mA

transmitter - receiver range: up to 20m

current consumption:

all outputs off : 10mA

all outputs on: 150mA

Data Sheet
