Name: 10-CHANNEL, 2-WIRE REMOTE CONTROL
SKU: K8023
Price: 9.76 EUR
Availability: InStock

10-CHANNEL, 2-WIRE REMOTE CONTROL

€9.76

In stock: 1 available

Product Details


10-CHANNEL, 2-WIRE REMOTE CONTROL

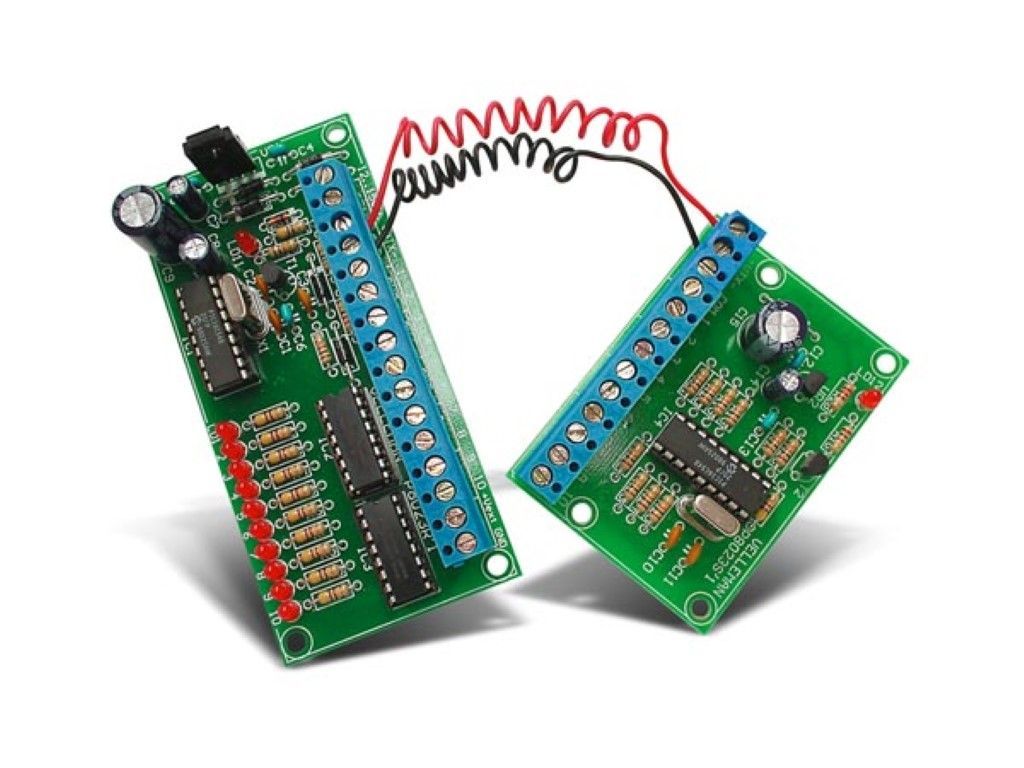

Product description This kit allows you to control up to 10 devices using only 2 wires at a long distance. Microprocessor controlled. Inputs can be push-buttons, switches or open collector outputs from another device. The receiver section provides 10 open collector outputs that allow you to control relays directly. Terminal block connectors for all input and output connections are included. All outputs are provided with LED indication. Can be used with our kits : K8000, K8006,... Can be connected to our standard relay card : K6714 or K6714-16. Specifications 10 open collector outputs: 50V / 100mA tested to a distance of up to 50m (55 yards) between control- and receiver section operating voltage: single 12-15V AC or DC, 300mA dimensions: control pcb: 70 x 50 x 16mm / 2.7 x 2 x 0.6" receiver pcb: 103 x 50 x 24mm / 4 x 2 x 1"
